YANG validator
Introduction
YANG validator is a web-based YANG data model validator. It is part of the YANG catalog website.

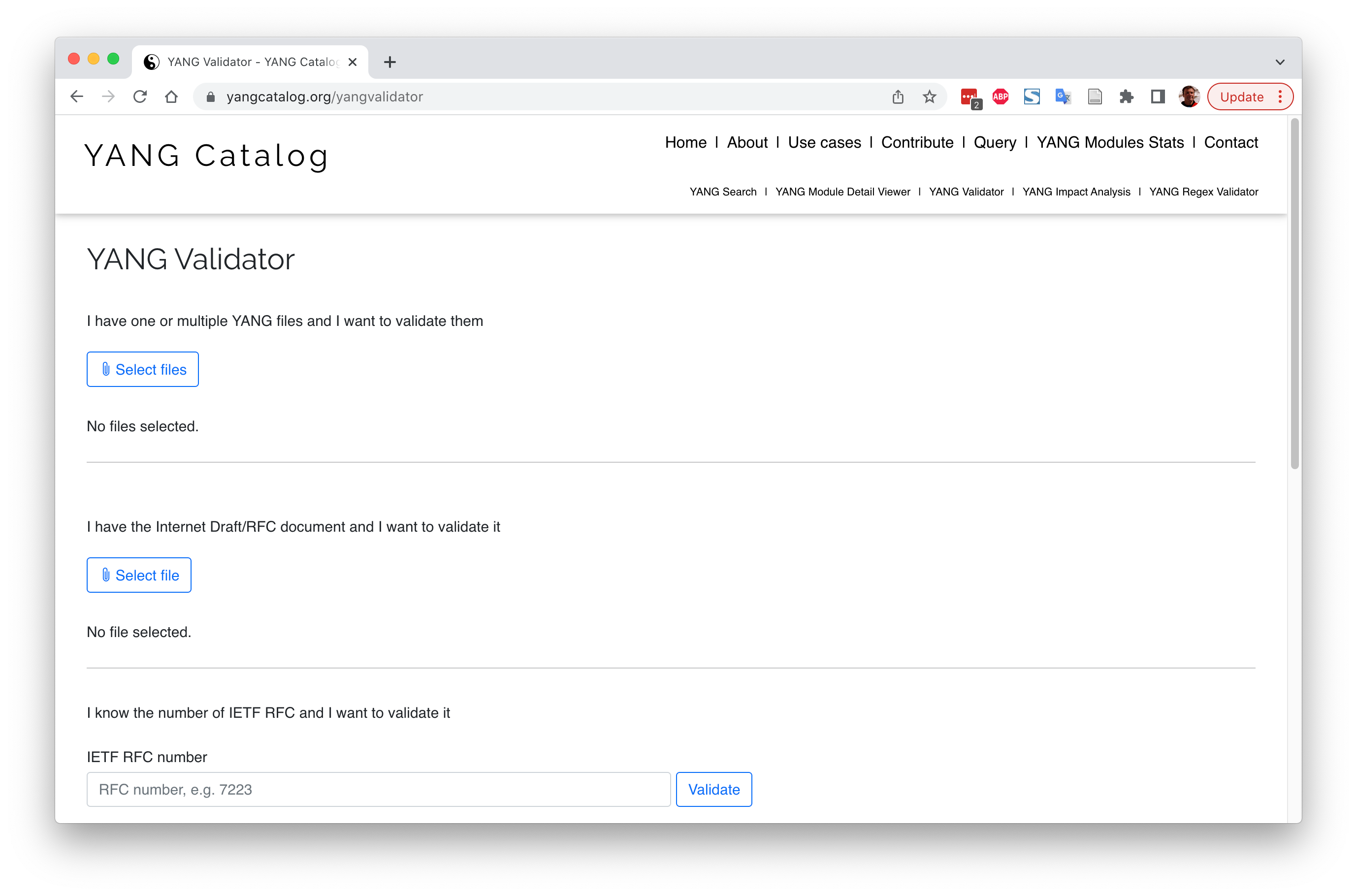

The home page of the YANG validator looks like this:
Validate a correct YANG data model
To validate the interfaces.yang data model, click the
button in the
“I have one or multiple YANG files and I want to validate them”
section, select file interfaces.yang and then click the
button.

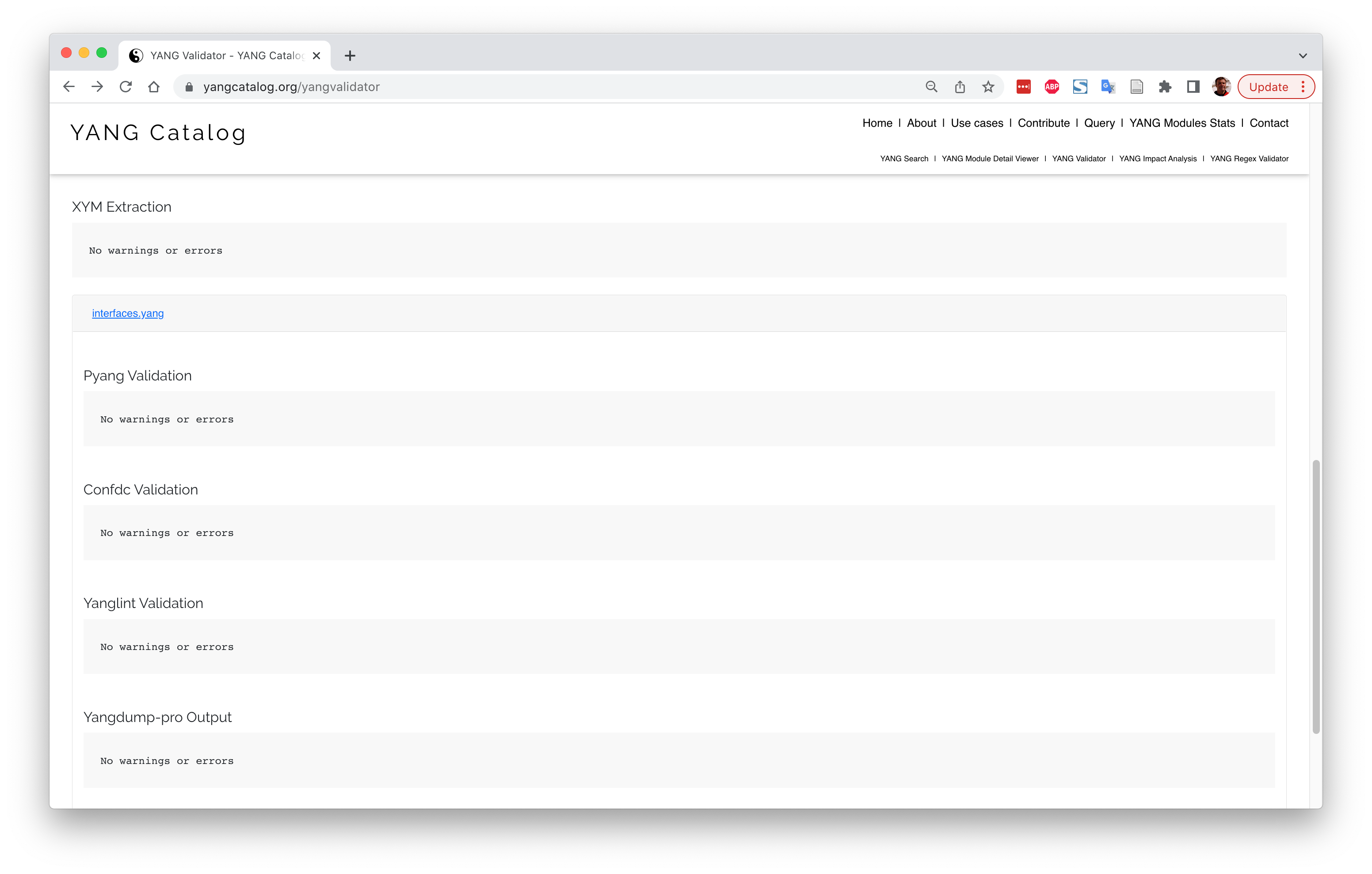

The validation results page reports the following results:
-
Extraction results from XYM which is a tool to extract YANG data models from a file (e.g. an IETF ID or RFC).
-
Validation results from the pyang YANG validator. See the pyang page in this tutorial for more details on pyang.
-
Validation results from the Cisco Tail-f ConfD YANG compiler. See the CONFD page in this tutorial (TODO) for more details on ConfD.
-
Validation results from the yanglint YANG validator. See the yanglint page in this tutorial for more details on yanglint.
-
Validation results from the YumaWorks yangdump-pro YANG validator. See the yangdump-pro page in this tutorial (TODO) for more details on yangdump-pro.
Validate an incorrect YANG data model

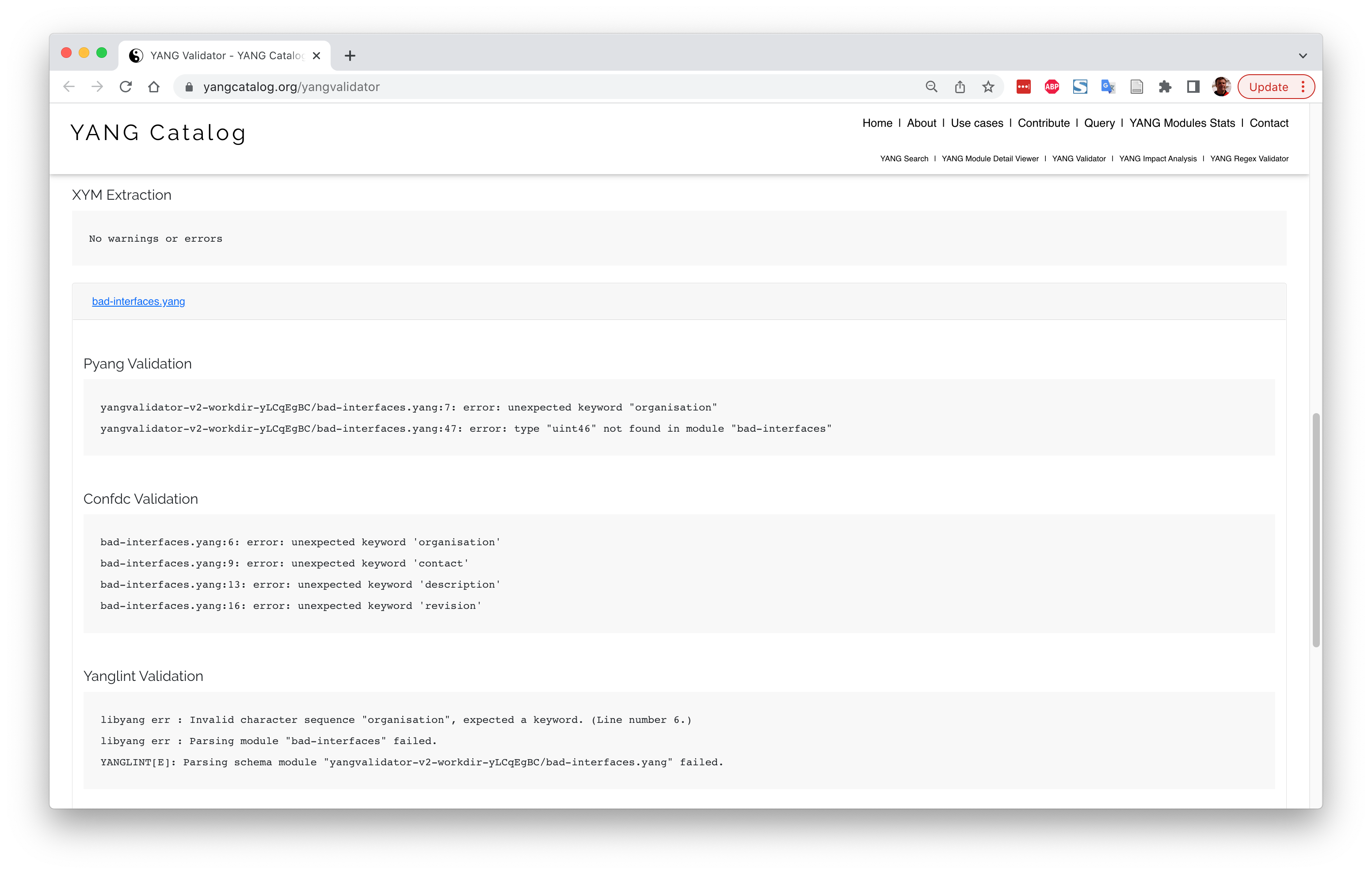

The following screenshot shows an example of validating an incorrect YANG data model,
namely bad-interfaces.yang.
Validate an IETF internet draft (ID) or request for comment (RFC)
YANG validator can also validate an IETF internet draft (ID) or request for comment (RFC) that contains YANG data models (as described in section 3.2 of RFC 8407).
For example, enter 8348 in the field in the “I know the number of IETF RFC and I want to validate it” section, then click the button, and accept the default values in the “Additional Information Required” window
